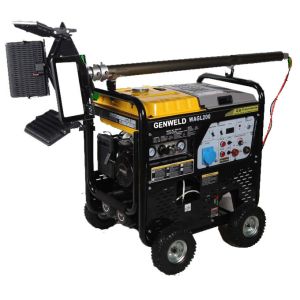

Multi-function 5kW Generator( Welding / Air Compression / Lighting )

Product Categories

Chongqing Lianwai Technology Co., Ltd.

Contact Now

Name: Multifunction 5kW Generator Welding Air Compression Lighting
Brand: GENWELD
Price: 1200 USD

Brand Name : GENWELD

Model Number : LWGL200

Certification : CE

Place of Origin : Chongqing, China

MOQ : One container

Price : USD 1200-1300 per set

Supply Ability : 1000 sets per month

Delivery Time : 30days

Packaging Details : Carton with pallet

Name : Engine driven welder generator

Power output : AC5.0kw/240V or 120V

Air pressure range : 0.6-0.8Mpa

Air tank : 20L

Light lift : 4.5M

Light power : Led/4x100W

Luminous flux : 80-100lm/w

Net weight : 168.5

Dimension : 850*583*780

Contact Now

GENWELD Portable 200A Gasoline Engine Driven Welding Generator With Air compressing & Lighting Functions

GENWELD Portable Four-In-One Machine Specifications

Generating section	Rated OCV(V)	220(AC)
	Rated power(kw)	5.0
	Max.power(kw)	5.5
	Rated current	22.7
Welding section	Duty cycle(%)	50%
	OCV(V)	75(DC)
	Current range(A)	DC 50-200
	Loaded voltage(V)	DC 22-28V
	Rated current/ voltage(A/V)	180A / 27.2V
Engine section	Engine model	SC420/CH440
	Max.power/Speed(RPM)	3600
	Displacement(CC)	420/ 429
	Start method	Electric
	Battery	12V/14Ah/Free maintenance
AIR COMPRESSOR	Capacity(L)	20.0
	Stage	1.0
	Flow	100L/min
	Pressure range	0.6-0.8Mpa
LIGHTS	Lights lift	4.5m
	Lights power	Led/4*100W
	Luminous flux	80-100lm/W
Whole set	Tank capacity(L)	30
	Protection class	IP23
	Outline size(mm)	850.5583780
	Carton packing size	860600800
	Net/gross weight(kg)	168.5kg
Start method:through drive
Generator:1.35KW/Single phase
Air compressor capacity:0.1m³/min
Pressure relief operation value:0.8 ±0.1
Pressure relief starting value:0.6 ±0.1
Safe valve operation value:0.9 ±0.1
Volume of Air Storage Tank:20L/double tanks

Multi-function 5kW Generator( Welding / Air Compression / Lighting )
